Field Project Portable Machine Tool Excavator Bulldozer Bucket Connecting Hole Align Centring
video
Field Project Portable Machine Tool Excavator Bulldozer Bucket Connecting Hole Align Centring

Field Project Portable Machine Tool Excavator Bulldozer Bucket Connecting Hole Align Centring

Boring rang: 55-300mm, Boring Bar:∅50×1828mm, Boring Stroke: 280mm, Feed Rate:0-0.5mm/rev Advantage: Modular, Light weight, Efficient, usaully used to repair worn holes and align connecting holes

Introduction to Portable Boring Machine

A portable boring machine is a compact and versatile tool used for drilling or enlarging holes in metal. It is an essential tool for many industries, including construction, manufacturing, maintenance, and repair.

Portable boring machines come in different types, according to the field situation, you can choose different configuration. They are powered by either electric or pneumatic motors and can be used on-site or in the workshop.



Benefits of a Portable Boring Machine

One of the main benefits of a portable boring machine is its convenience, as it can be easily transported and used on-site. It also offers precision and accuracy in drilling holes, making it ideal for precision work. Additionally, portable boring machines can bore both small and large holes, and they are often more affordable than larger, stationary boring machines.



Once, our client – a manufacturing company needed to drill a series of large holes on an offshore oil rig in the middle of the ocean. They needed a machine that could be easily transported and operated on-site to save time and resources.

They decided to use a portable line boring machine, which allowed them to drill precise, large-diameter holes in the metal components of the oil rig. The machine was powered by a pneumatic motor and used a line boring bar to drill through the metal components.

The on-site boring project was completed within the deadline, and the company was able to save time and resources by using the portable boring machine. They were also able to achieve the necessary level of precision and accuracy required for the project.



TDG50 1

TDG50 14

TDG50 17

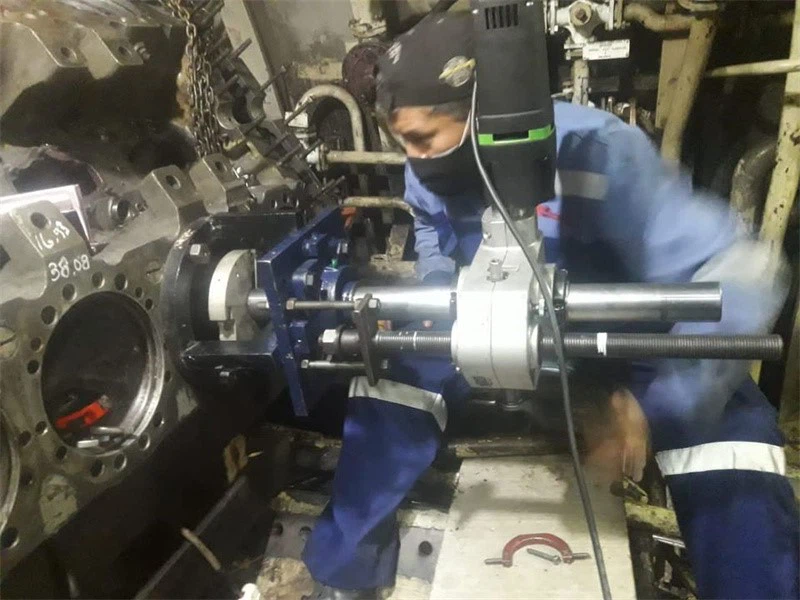

TDG50- 1





Specifications:

TDG50 Line Boring TDG50PLUS Line Boring
Boring Diameter:  55-300mm Boring Diameter: 40-300mm
Boring Stroke: 280mm Boring Stroke:280mm
Feed Rate:  0-0.5mm/rev Feed Rate:  0-0.5mm/rev
Bar RPM: 0-49、49-98 Bar RPM: 0-49、49-98
Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W
Boring Bar:∅50×1828mm Boring Bar:∅50×1828mm,∅35×1200mm
Shipping Weight:98kg Shipping Weight:125kg
DTH is a professional exporter of field project portable machine tool excavator bulldozer bucket connecting hole align centring, which is also known as one of the most credible such manufacturers and suppliers. You can rest assured to buy or wholesale customized field project portable machine tool excavator bulldozer bucket connecting hole align centring which is made in China at low price with our factory.



Specification:

TDG50 Line Boring TDG50PLUS Line Boring
Boring Diameter:  55-300mm Boring Diameter: 40-300mm
Boring Stroke: 280mm Boring Stroke:280mm
Feed Rate:  0-0.5mm/rev Feed Rate:  0-0.5mm/rev
Bar RPM: 0-49、49-98 Bar RPM: 0-49、49-98
Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W
Boring Bar:∅50×1828mm Boring Bar:∅50×1828mm,∅35×1200mm
Shipping Weight:98kg Shipping Weight:125kg

תגיות פופולריות: field project portable machine tool excavator bulldozer bucket connecting hole align centring manufacturers, suppliers, factory, wholesale, customized, buy, low price, made in China
